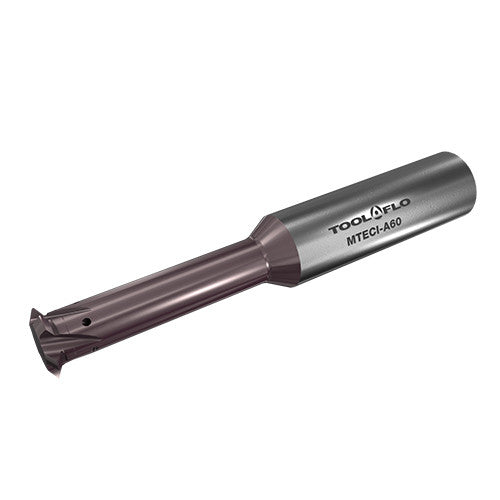

MTECI 1614E45 A60 AC22
Item #: FG335606406
Brand: Tool-Flo
Model #: 1271346
| Product Specifications | |
|---|---|
| Thread Size | =>18 |
| Pitch TPI External (TPI Ext) | 15-10 Threads/" |
| Thread Standard | UN60 |
| Pitch Internal | 2.0-3.0″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Pitch External | 1.75-2.5″ |
| Cutting Diameter (DC) | 0.551″ |
| Cutting Edge Material | Carbide |
| Overall Length (OAL) | 3.976″ |
| Cutting Position | BOTH |
| Flute Count (NOF) | 5 |
| Usable Length (LU) | 1.7716″ |
| Coolant Supply Property (CSP) | Through Hole |
| Measurement Type | Inch |
| Shank Type | Round |
| Grade | AC22 |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | |
| Connection Code Machine Side (CCMS) | ZYL01G1600h$06 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | M60 |
| Pitch TPI Internal (TPI Int) | 13-8 Threads/" |
