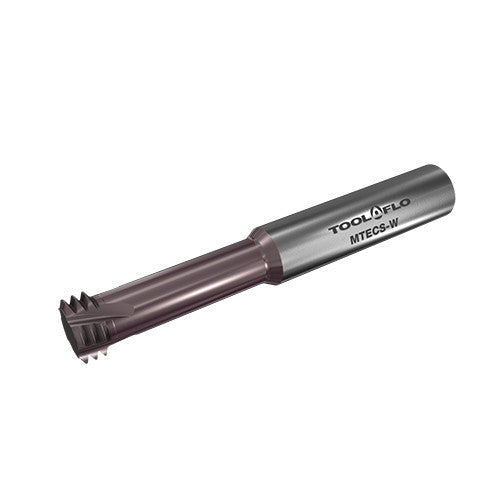

MTECS 1212D37 14W AC22
Item #: FG335607410
Brand: Tool-Flo
Model #: 1271462
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 14 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Standard | BSP(G) |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Position | INT |
| Cutting Diameter (DC) | 12 mm |
| Usable Length (LU) | 37 mm |
| Overall Length (OAL) | 84 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | AC22 |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | ZYL01G1200h$06 |
| Application | | External Thread Milling | Internal Thread Milling | |
| Thread Form Type (THFT) | WH55 |
