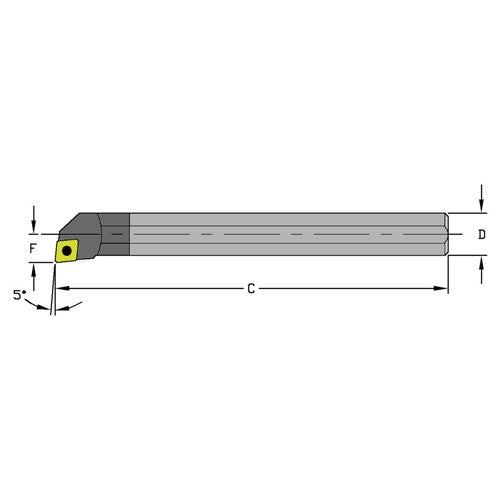

Indexable Coolant-Thru Boring Bar-E04H-SCLDR1.5 1/4″ SH
Item #: FG550029
Brand: Ultra-Dex
Model #: 920-000-129
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Minimum Bore Diameter (DMIN) | .312″ |
| Functional Length (LF) | 4″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Reduced Body Diameter Length (LDRED) | 0.27″ |
| Tool Type | Indexable Coolant Thru Boring Bar |
| Functional Width (WF) | .172″ |
| Style | SCLDR |
| Master Insert Identification (MIID) | CDGW 1.510 |
