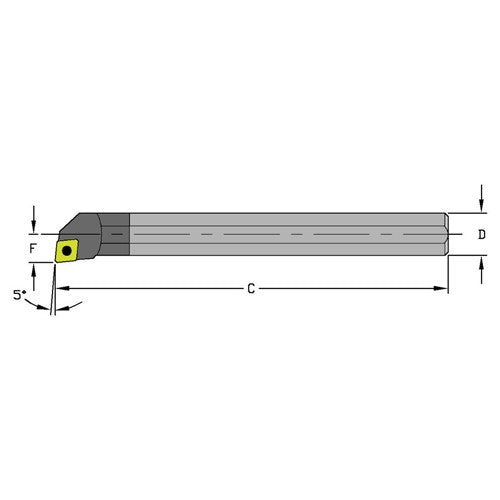

Indexable Coolant-Thru Boring Bar-E10Q-SCLCR3 5/8″ SH
Item #: FG550079
Brand: Ultra-Dex
Model #: 920-000-253
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Minimum Bore Diameter (DMIN) | .760″ |
| Functional Length (LF) | 7″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 7″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Reduced Body Diameter Length (LDRED) | 0.76″ |
| Tool Type | Indexable Coolant Thru Boring Bar |
| Functional Width (WF) | .406″ |
| Style | SCLCR |
| Master Insert Identification (MIID) | CCMT 32.51 |
