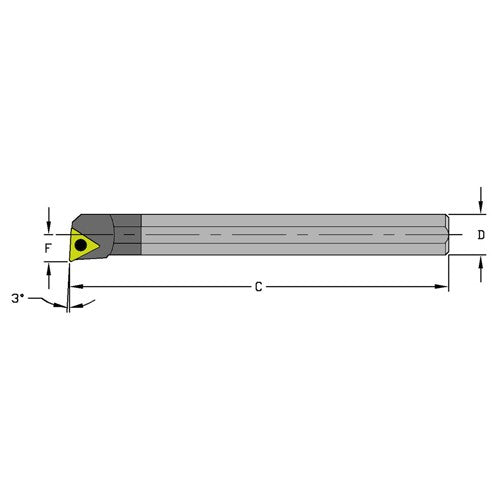

Indexable Coolant-Thru Boring Bar-E08J-STUCR2 1/2″ SH
Item #: FG550569
Brand: Ultra-Dex
Model #: 920-000-199
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Minimum Bore Diameter (DMIN) | .600″ |
| Functional Length (LF) | 4-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Reduced Body Diameter Length (LDRED) | 0.56″ |
| Tool Type | Indexable Coolant Thru Boring Bar |
| Functional Width (WF) | .312″ |
| Style | STUCR |
| Master Insert Identification (MIID) | TCMT 21.51 |
| Measurement Type | Inch |
