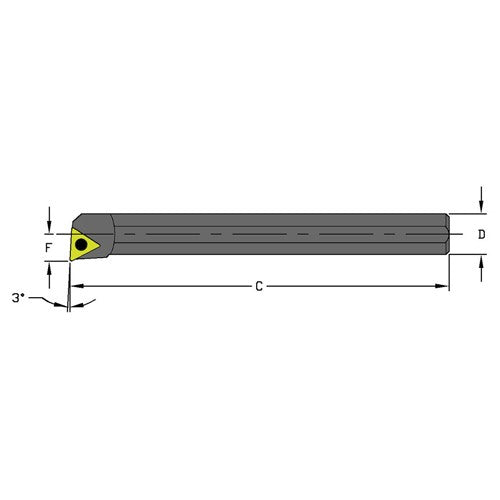

Indexable Coolant Thru Boring Bar-A05G STUCR1.2 5/16″ SH
Item #: FG550735
Brand: Ultra-Dex
Model #: 957-000-015
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.312″ |
| Minimum Bore Diameter (DMIN) | .395″ |
| Functional Length (LF) | 3-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3-1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Reduced Body Diameter Length (LDRED) | 0.34″ |
| Tool Type | Indexable Coolant Thru Boring Bar |
| Functional Width (WF) | .219″ |
| Style | STUCR |
| Master Insert Identification (MIID) | TCMT 1.21.20.5 |
