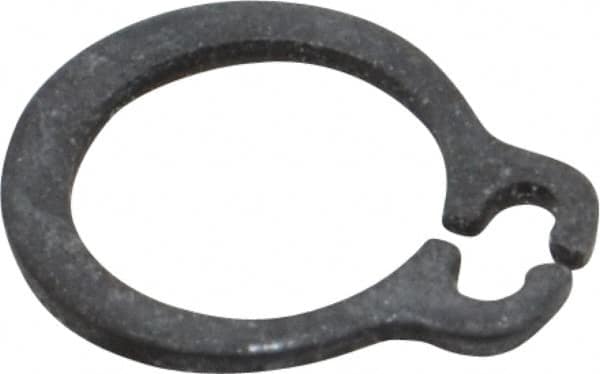

Rotor Clip - 29mm Shaft Diam, 27.6mm Groove Diam, Spring Steel Metric External SH Style Retaining Ring
Item #: 99622730
Brand: Rotor Clip
Model #: DSH-29ST PD
Features and Benefits
SH style external retaining rings refer to shaft style and is applied externally onto the shaft of a workpiece. The SH ring is installed by separating the lugs, then being released into a groove.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | SH Style |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 29.00 |
| Groove Diameter (mm) | 27.60 |
| Free Diameter (mm) | 26.90 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Groove Width (mm) | 1.60 |
| Groove Depth (mm) | 0.70 |
| Ring Thickness (mm) | 1.50 |
| Free Diameter Tolerance (mm) | -0.420 to 0.210 |
| Ring Thickness Tolerance (mm) | -0.06 |
