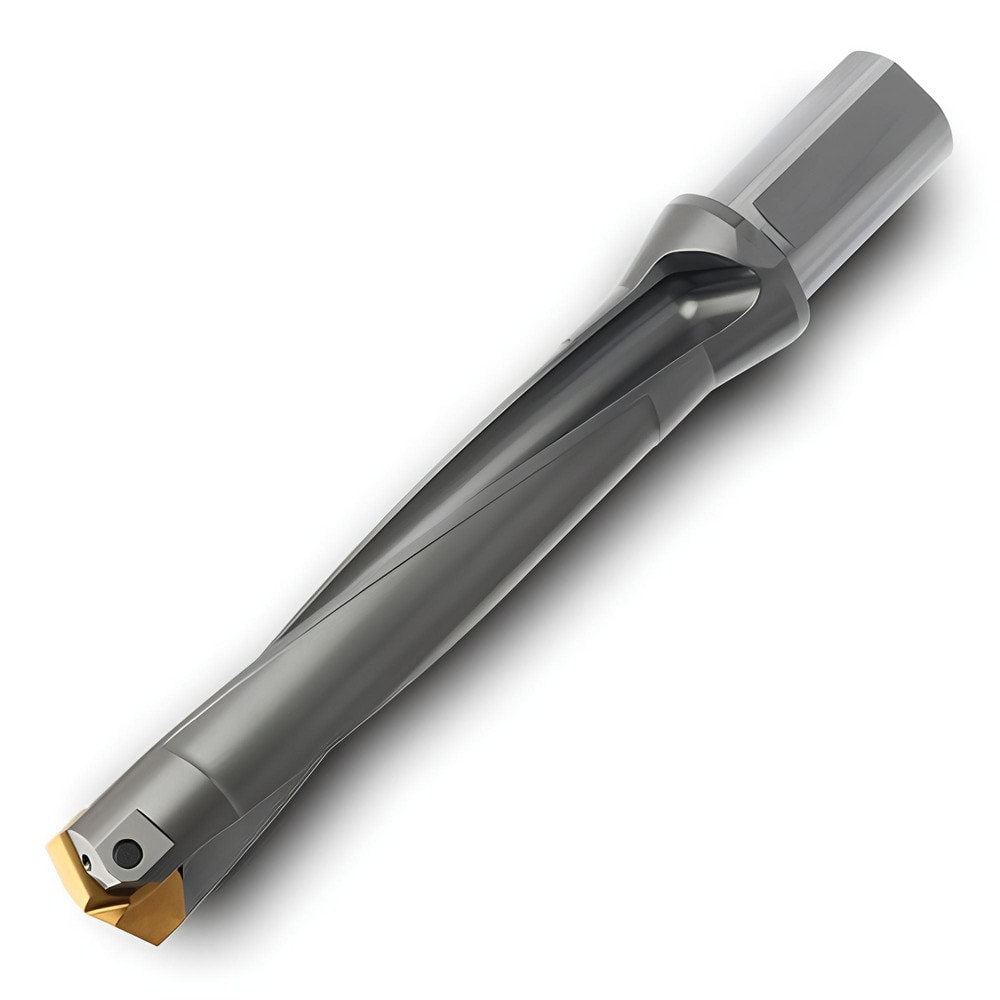

Brand: Ingersoll Cutting Tools / Part #: 6176927
Item #: 98837131
Brand: Ingersoll Cutting Tools
Model #: 6176927
Product Specifications
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 22.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 113.42 |
| Shank Type | Flatted |
| Insert Style | LPF; LPA |
| Insert Seat Size | 22 |
| Shank Diameter (mm) | 25.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPF; LPA |
| Compatible Insert Size Code | 23..; 22.. |
| Overall Length (mm) | 187.8800 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 131.88 |
| Body Length | 131.880 |
| Shank Length (mm) | 56.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
