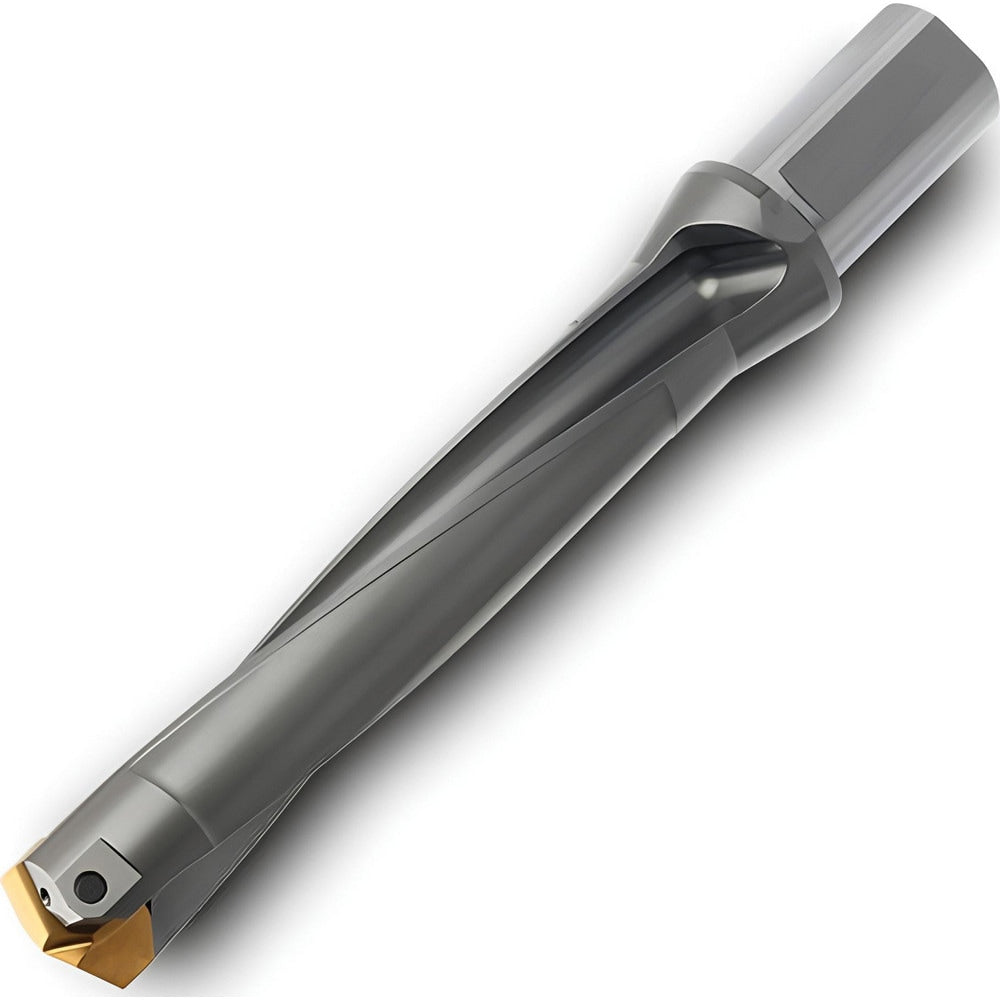

Brand: Ingersoll Cutting Tools / Part #: 6192331
Item #: 98755812
Brand: Ingersoll Cutting Tools
Model #: 6192331
Product Specifications
| Minimum Drill Diameter (mm) | 21.00 |
| Maximum Drill Diameter (mm) | 21.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 108.29 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Insert Seat Size | 21 |
| Shank Diameter (mm) | 25.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 2100; 2150 |
| Overall Length (mm) | 183.6400 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 127.64 |
| Body Length | 127.640 |
| Shank Length (mm) | 56.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
