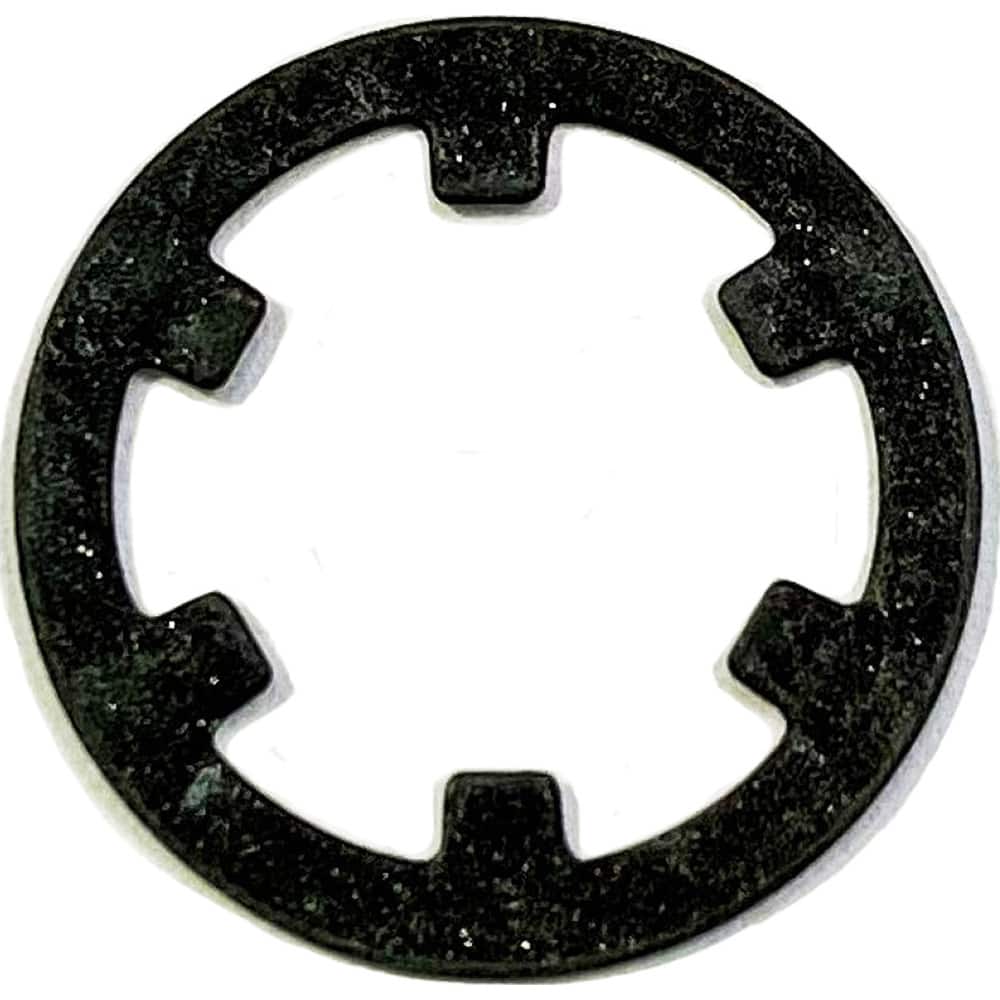

Rotor Clip - External Retaining Rings Type: Self Locking System of Measurement: Inch
Item #: 14386445
Brand: Rotor Clip
Model #: TY-87ST PA
Features and Benefits
Self-locking external retaining rings have teeth on the inside diameter that secure and lock to the outside of a shaft.
Spring steel is a low-alloy, carbon steel with very high yield strength.
Product Specifications
External Retaining Rings; Type: Self Locking ; System of Measurement: Inch ; Shaft Diameter (Inch): 7/8 ; Groove Diameter (Decimal Inch): 0.0600 ; Free Diameter (Decimal Inch): 0.8730 ; Free Outside Diameter (Decimal Inch): 0.8770
| Type | Self Locking |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 7/8 |
| Groove Diameter (Decimal Inch) | 0.0600 |
| Free Diameter (Decimal Inch) | 0.8730 |
| Free Outside Diameter (Decimal Inch) | 0.8770 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Material Grade | SAE 1060-1090 |
| Ring Thickness (Decimal Inch) | 0.0150 |
| Minimum Shaft Diameter (Decimal Inch) | 0.8730 |
| Minimum Shaft Diameter (mm) | 22.23 |
| Maximum Shaft Diameter (Decimal Inch) | 0.8770 |
| Maximum Shaft Diameter (mm) | 22.23 |
| Number of Prongs | 10 |
| Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load at Optional Thickness (Lb.) | 60.00 |
