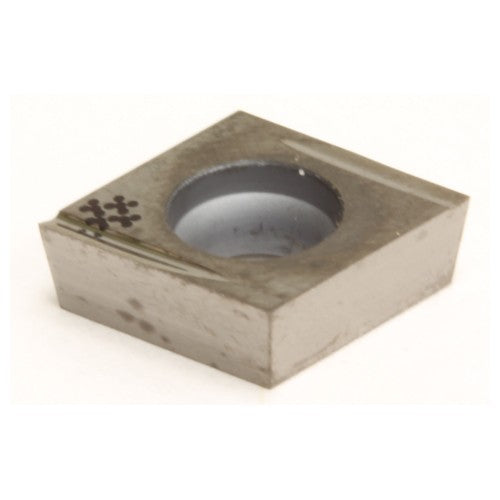

CCGT32.50.5RFX-T1200A Turning Insert
Item #: FJ0110CA193
Brand: Sumitomo
Model #: 10CA193
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel|Cast Iron|Exotic Alloys|Hardened Steel|Steel|Non-Ferrous Material |
| Tool Type | Turning Insert |
| Insert Style | CCGT |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.008″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.50.5 |
| Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.016″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | FX |
| Cutting Edge Material | Cermet |
| Shape | 80° Diamond |
| Grade | T1200A |
