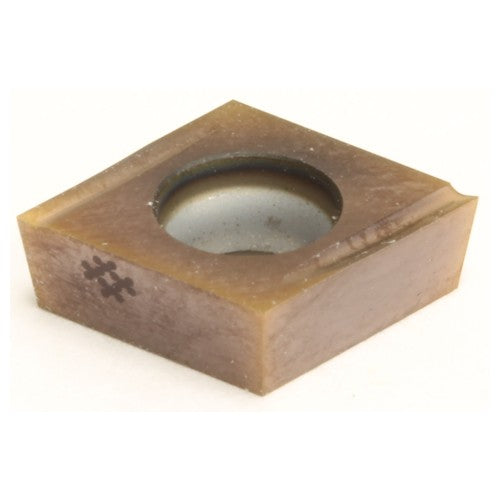

CCGT32.51LFX-AC530U Turning Insert
Item #: FJ0110HMACW
Brand: Sumitomo
Model #: 10HMACW
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron|Stainless Steel|Exotic Alloys|Hardened Steel|Steel|Non-Ferrous Material |
| Tool Type | Turning Insert |
| Insert Style | CCGT |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.016″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.51 |
| Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.016″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | FX |
| Cutting Edge Material | Carbide |
| Shape | 80° Diamond |
| Grade | AC530U |
