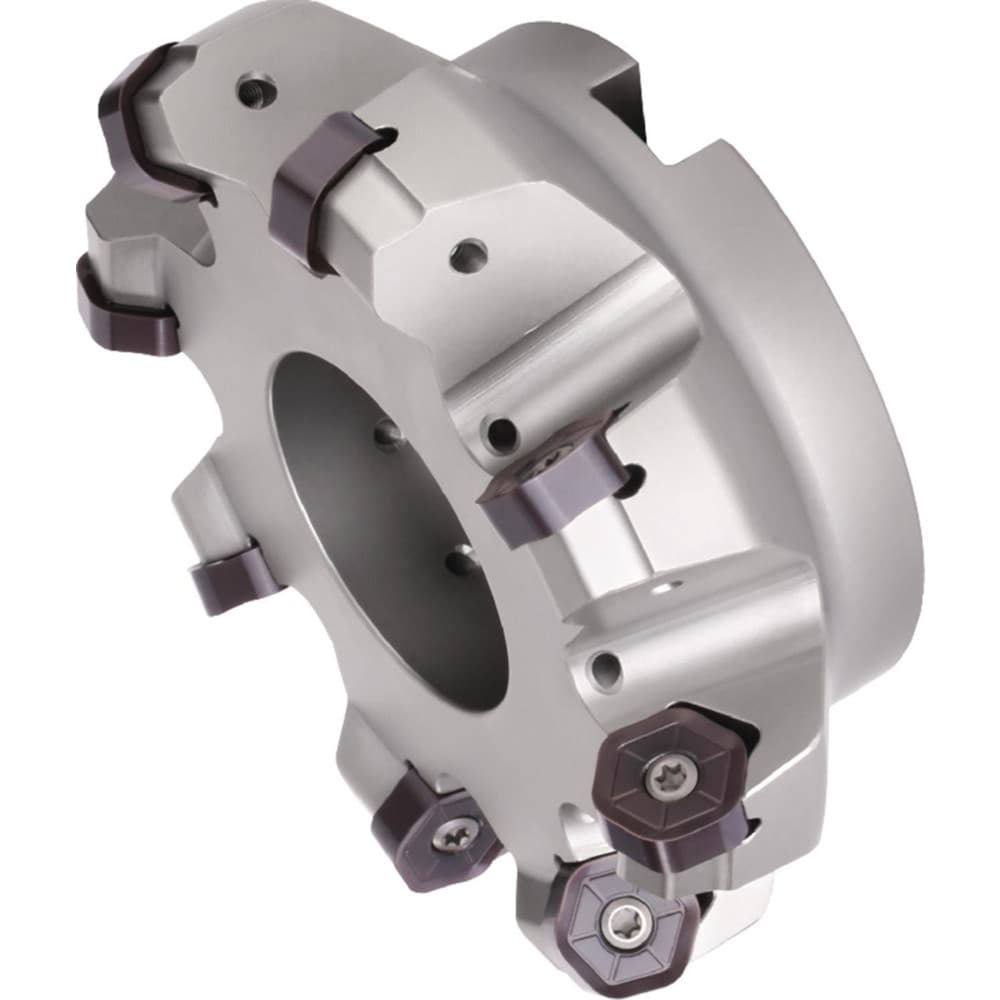

Brand: Widia / Part #: 3750434
Item #: 97195200
Brand: Widia
Model #: 3750434
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 97.88 |
| Maximum Depth of Cut (mm) | 2.20 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | HN..0905 |
| Maximum Ramping Angle | 0.00 degree |
| Cutter Style | M1200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M1200 |
| Maximum Body Diameter (mm) | 27.00 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Maximum RPM | 7300 |
| Tool Application | Milling; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Titanium; Steel; Super-Alloy |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Coolant Through | Yes |
