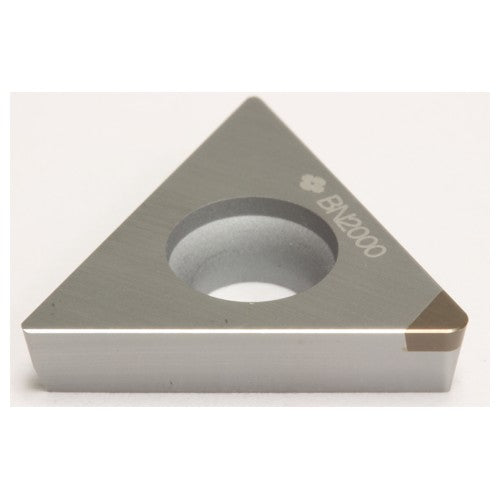

NUTPGA332-BNX10 Turning Insert
Item #: FJ0316BW279
Brand: Sumitomo
Model #: 16BW279
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron|Exotic Alloys|Hardened Steel |
| Grade | BNX10 |
| Insert Style | TPGA |
| Tool Type | Turning Insert |
| Corner Radius (RE) | 0.031″ |
| Fixing Hole Diameter (D1) | 0.169″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.015″ |
| Insert Thickness (S) | 3/16″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Number of Cutting Edges | 1 |
| Cutting Edge Material | PCBN |
| Shape | 60° Triangle |
| Coating | Uncoated |
