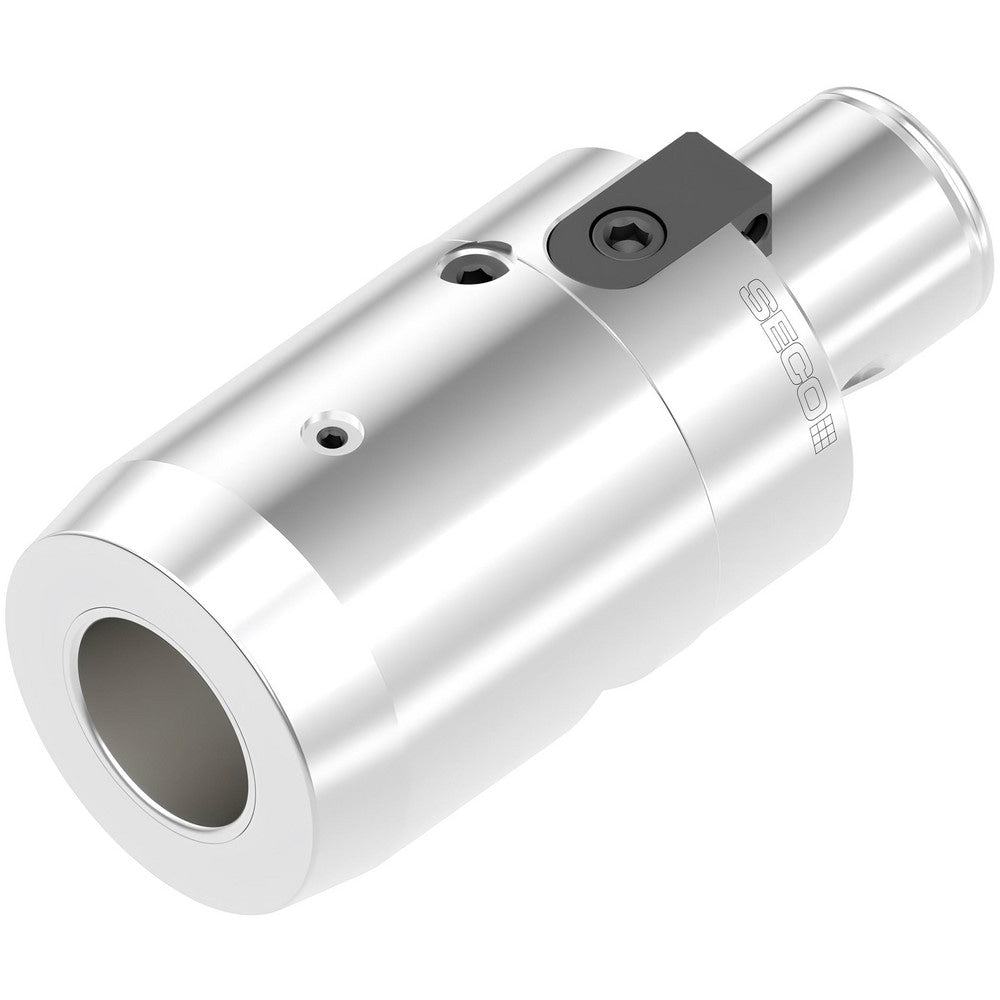

Brand: Seco / Part #: 10137324
Item #: 98759368
Brand: Seco
Model #: 10137324
Product Specifications
| Shank Type | Modular Connection |
| Connection Size | G6 |
| Taper Size | None |
| Chuck Hole Diameter | 32.00 |
| Nose Diameter (Mm) ( - 2 Decimals) | 64.00 |
| Projection (mm) | 74.000 |
| Clamping Depth (mm) | 63.00 |
| Through Coolant | Yes |
| Overall Length (mm) | 140.0000 |
| Series | HC32 |
| Material | Steel |
| Cutting Direction | Neutral |
| Number Of Pieces | 1.000 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 3.94 |
| Hole Diameter (Mm) ( - 0 Decimals) | 32.0000 |
| Body Diameter (Decimal Inch) | 2.5197 |
