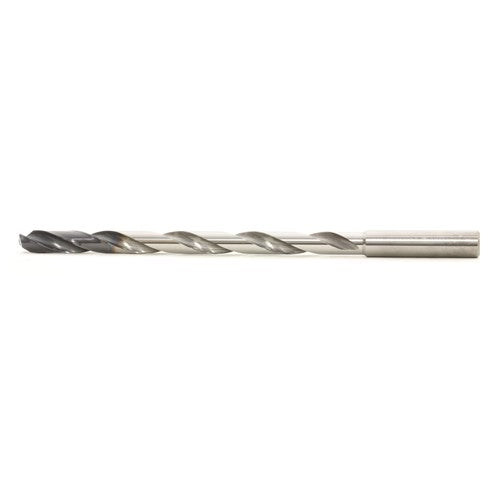

MDW051XHV12 5.1 mm Dia. × 6 mm Shank × 81 mm Flute Length × 131 mm OAL, DEX, External Coolant, Cylindrical Solid Carbide Drill
Item #: FJ06U101195
Brand: Sumitomo
Model #: U101195
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5.1 mm |
| Shape | Solid Carbide |
| Decimal Equivalent | 0.2008″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.1 mm |
| Tool Type | Solid Carbide |
| Length Group | 15xD |
| Point Shape | 140 Degrees |
| Coating | DEX |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 78 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 81 mm |
| Shank Type | Cylindrical |
| Overall Length (OAL) | 131 mm |
