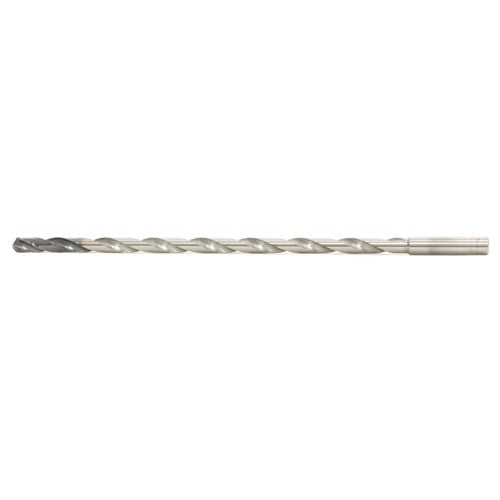

MDW075XHV20 7.5 mm Dia. × 8 mm Shank × 179 mm Flute Length × 231 mm OAL, DEX, External Coolant, Cylindrical Solid Carbide Drill
Item #: FJ06U101230
Brand: Sumitomo
Model #: U101230
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7.5 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2953″ |
| Tool Type | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.5 mm |
| Point Shape | 140 Degrees |
| Coating | DEX |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Usable Length (LU) | 176 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 179 mm |
| Shank Type | Cylindrical |
| Overall Length (OAL) | 231 mm |
| Shape | Solid Carbide |
