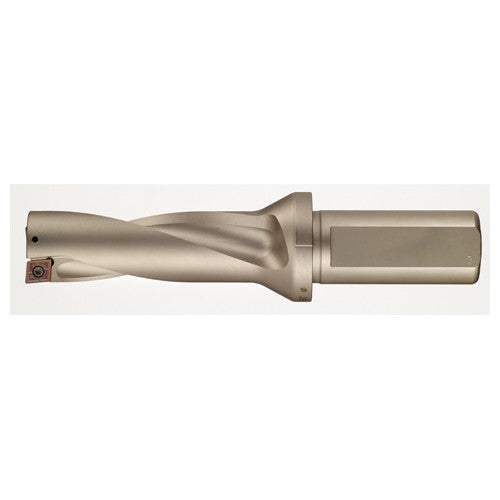

WDX200D2S25 Indexable Drill
Item #: FJ082A00104
Brand: Sumitomo
Model #: 2A00104
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Overall Length (OAL) | 114 mm |
| Usable Length (LU) | 43 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Measurement Type | Metric |
| Shank Length (LS) | 56 mm |
| Master Insert Identification (MIID) | WDXT 063006 |
| Functional Length (LF) | 58 mm |
| Decimal Equivalent | 0.7874″ |
