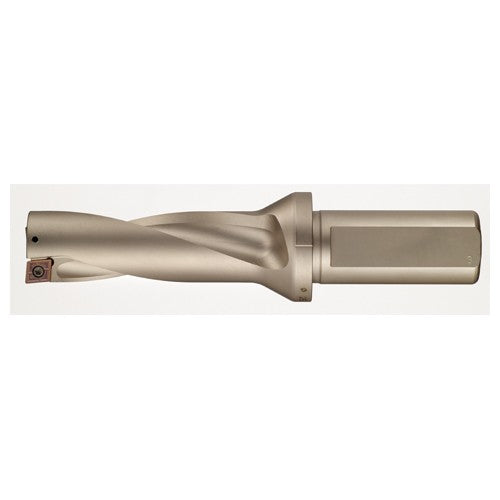

WDX540D2S40 Indexable Drill
Item #: FJ082A00291
Brand: Sumitomo
Model #: 2A00291
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 54 mm |
| Overall Length (OAL) | 213 mm |
| Usable Length (LU) | 113 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Shank Length (LS) | 70 mm |
| Master Insert Identification (MIID) | WDXT 156012 |
| Functional Length (LF) | 143 mm |
| Decimal Equivalent | 2.126″ |
