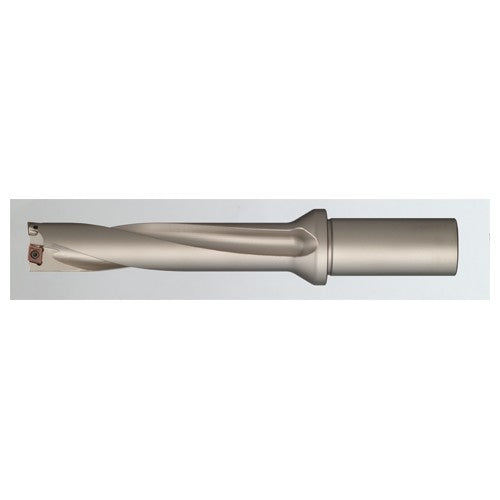

WDX145D5S20 Indexable Drill
Item #: FJ082A00334
Brand: Sumitomo
Model #: 2A00334
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14.5 mm |
| Overall Length (OAL) | 134.5 mm |
| Usable Length (LU) | 75.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Measurement Type | Metric |
| Shank Length (LS) | 44 mm |
| Master Insert Identification (MIID) | WDXT 042004 |
| Functional Length (LF) | 90.5 mm |
| Decimal Equivalent | 0.5709″ |
