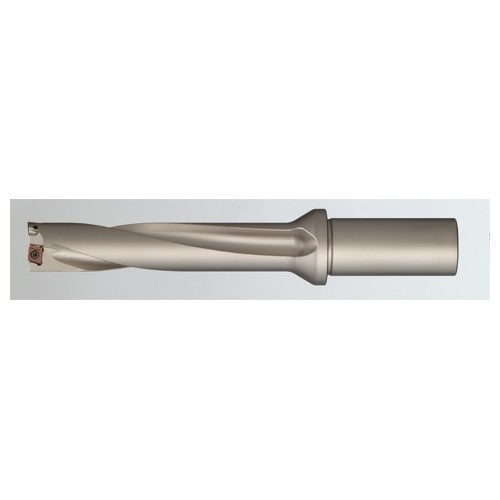

WDX180D5S25 Indexable Drill
Item #: FJ082A00341
Brand: Sumitomo
Model #: 2A00341
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 18 mm |
| Overall Length (OAL) | 164 mm |
| Usable Length (LU) | 93 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Measurement Type | Metric |
| Shank Length (LS) | 56 mm |
| Master Insert Identification (MIID) | WDXT 052504 |
| Functional Length (LF) | 108 mm |
| Decimal Equivalent | 0.7087″ |
