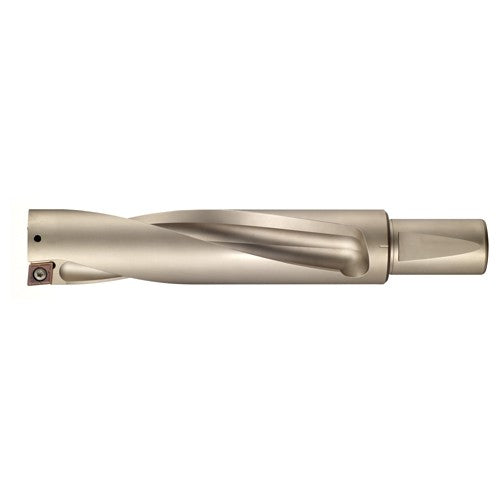

WDX560D4S40 Indexable Drill
Item #: FJ082A00405
Brand: Sumitomo
Model #: 2A00405
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 56 mm |
| Overall Length (OAL) | 334 mm |
| Usable Length (LU) | 232 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Shank Length (LS) | 70 mm |
| Master Insert Identification (MIID) | WDXT 186012 |
| Functional Length (LF) | 264 mm |
| Decimal Equivalent | 2.2047″ |
