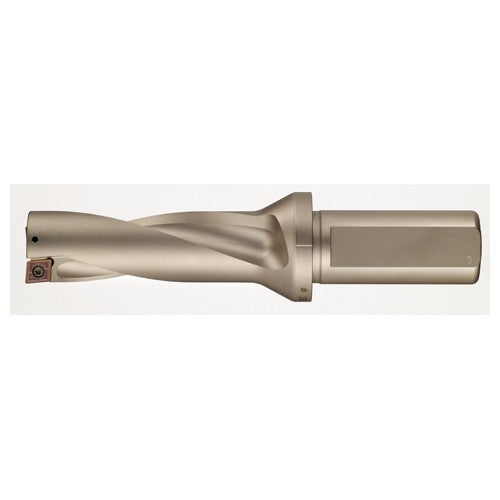

WDX2625D2S150 Indexable Drill
Item #: FJ082A00W4E
Brand: Sumitomo
Model #: 2A00W4E
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2-5/8″ |
| Overall Length (OAL) | 9.827″ |
| Usable Length (LU) | 5.567″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Shank Length (LS) | 3″ |
| Master Insert Identification (MIID) | WDXT186012 |
| Functional Length (LF) | 6.827″ |
| Decimal Equivalent | 2.625″ |
