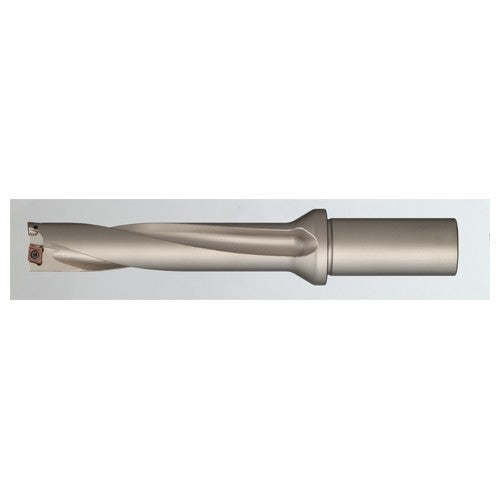

WDX1750D5S150 Indexable Drill
Item #: FJ082A00W5B
Brand: Sumitomo
Model #: 2A00W5B
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-3/4″ |
| Overall Length (OAL) | 13.128″ |
| Usable Length (LU) | 8.947″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Shank Length (LS) | 3″ |
| Master Insert Identification (MIID) | WDXT125012 |
| Functional Length (LF) | 10.128″ |
| Decimal Equivalent | 1.75″ |
