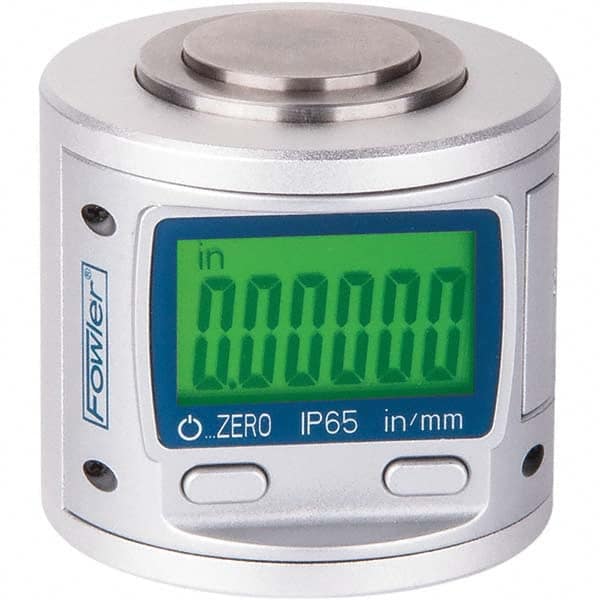

Fowler - 2" OAH x 55mm OAW x 2.05" OAL Magnetic Height Offset Gage
Item #: 95916649
Brand: Fowler
Model #: 54-188-200-0
Features and Benefits
Height offset gages measure the height offset of a workpiece as it relates to the position of the cutting tool.
| Product Specifications | |
|---|---|
| Type | Height Offset Gage |
| Overall Height (mm) | 53.3 |
| Overall Height (Decimal Inch) | 2 |
| Overall Height (Inch) | 2 |
| Overall Width/Diameter (mm) | 55.00 |
| Overall Width/Diameter (Decimal Inch) | 2.1700 |
| Overall Length (Decimal Inch) | 2.0500 |
| Power Source | CR2032 |
| Magnetic | Yes |
| Includes Indicator | Yes |
| Taper Size | None |
| Height Measuring Capacity (Inch) | 2 |
| Height Measuring Capacity (Decimal Inch) | 2.0000 |
| Diameter Capacity (Decimal Inch) | 2.0000 |
| Accuracy (Decimal Inch) | 0.0002 |
| Detection Type | Magnetic Band |
| Graduation (Decimal Inch) | 0.00005 |
| Plate Diameter (Decimal Inch) | 1.0000 |
| Plate Material | Steel |
| Stroke (Decimal Inch) | 0.5000 |
