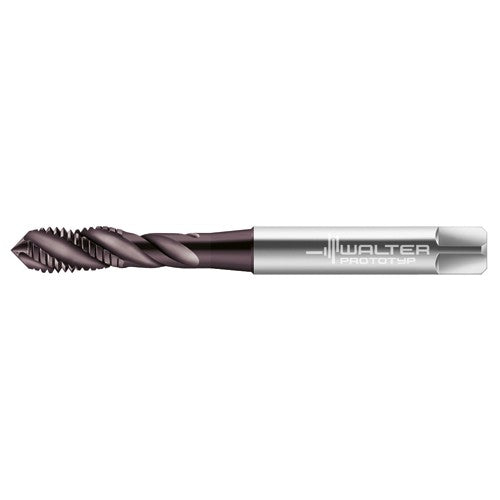

1/4-28 UNF 2B 3 Flute HSS THL Spiral Flute Tap
Item #: FK106245688
Brand: Walter-Prototyp
Model #: 6245688
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 28 |
| Standard | DIN 2184-1 |
| Thread Standard | NF |
| Coating | TiAlN |
| Overall Length (OAL) | 81.41 mm |
| Flute Length | 26 mm |
| Thread Cutting Part Length (THL) | 10 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
