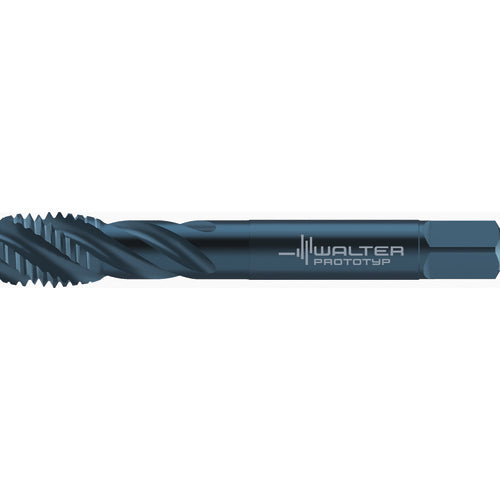

3/8″-16 EGUNC 3B 3 Flute HSS-E Steam Oxide Modified Bottoming Spiral Flute Tap
Item #: FK107557129
Brand: Walter-Prototyp
Model #: 7557129
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Thread Tolerance Class (TCTR) | 3B |
| Threads per Inch (TPI) | 16 |
| Chamfer | Modified Bottom |
| Thread Standard | EGUNC |
| Coating | Steam Oxide |
| Overall Length (OAL) | 100 mm |
| Flute Length | 39 mm |
| Usable Length (LU) | 72 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees |
| Grade | WY80FC |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-E |
