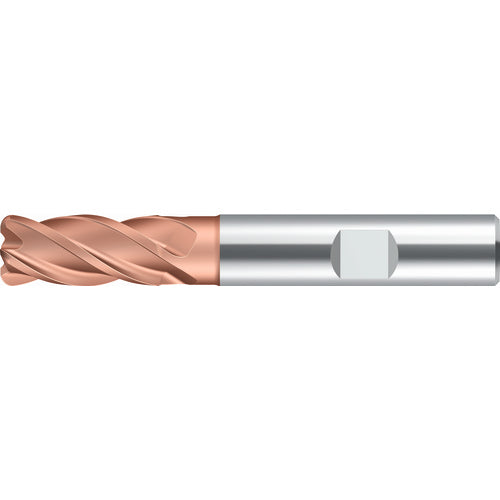

MC232.12.7W4D038C-WJ30ED
Item #: FK107568747
Brand: Walter-Prototyp
Model #: 7568747
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Grade | WJ30ED |
| Depth of Cut Maximum (APMX) | 1″ |
| Tool Type | Corner Radius |
| Overall Length (OAL) | 3-1/2″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Shank Standard | DIN 6535 HB |
| Coating | AlCrSiN |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 35 Degrees |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Series/List # | MC232 |
| End Shape | Corner Radius |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Usable Length (LU) | 2″ |
