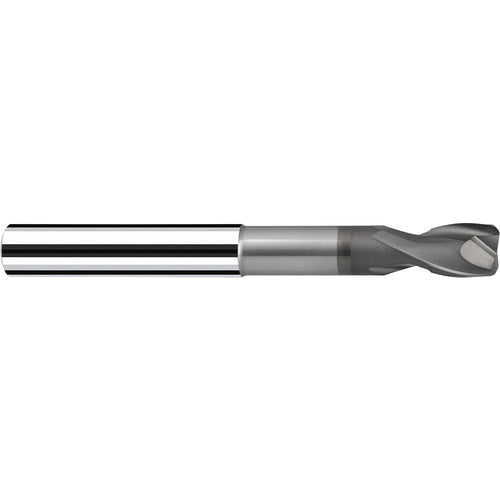

B7284501 TOROXG 12MM 4 FL
Item #: FR10B7284501
Brand: Fraisa USA Inc
Model #: B7284501
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Grade | XA |
| Depth of Cut Maximum (APMX) | 13 mm |
| Neck Diameter (DN) | 11 mm |
| Overall Length (OAL) | 120 mm |
| Tool Type | Square Endmill |
| Cutting Edge Material | Carbide |
| Length Group | 6xD |
| Coating | Diaplus |
| Flute Type | Spiral |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | ToroXG |
| Applicable Material | Other Non-Metallic Materials |
| Cutting Direction (HAND) | Right Hand |
