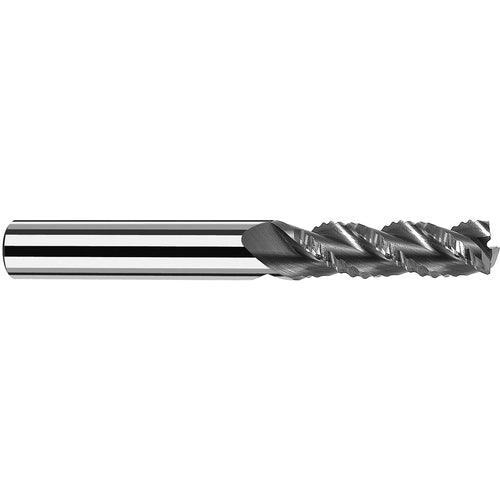

C95997652 AX-FP 3/4″ 3 FL
Item #: FR10C95997652
Brand: Fraisa USA Inc
Model #: C95997652
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Depth of Cut Maximum (APMX) | 2-1/2″ |
| Corner Chamfer Width (CHW) | 0.006″ |
| Overall Length (OAL) | 5″ |
| Tool Type | Square Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long |
| Coating | Celero |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Series/List # | AX-FP |
