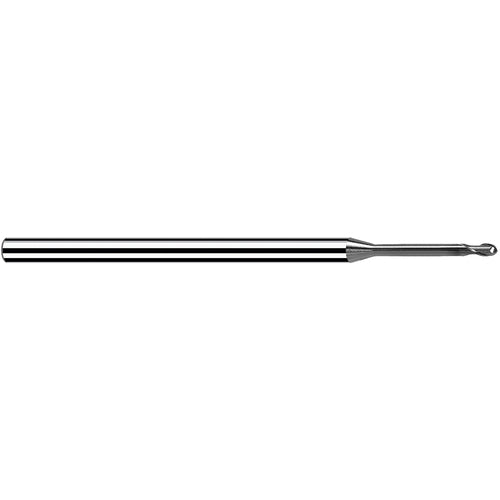

M5787080 MICROCUT-B10 0.8
Item #: FR10M5787080
Brand: Fraisa USA Inc
Model #: M5787080
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.8 mm |
| Neck Length (LN) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Grade | MG10 |
| Depth of Cut Maximum (APMX) | 0.96 mm |
| Tool Type | Ballnose Endmill |
| Overall Length (OAL) | 40 mm |
| Length Group | 10xD |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | Micro |
| Flute Type | Spiral |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Shank Type | Round |
| Series/List # | Microcut-B10 |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.4 mm |
| Center Cutting | Yes |
| Neck Diameter (DN) | 0.75 mm |
| Single / Double End | Single End |
