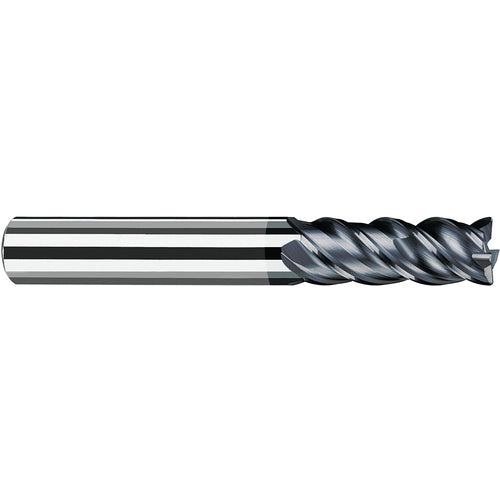

P15970609 NX-RNVD 5/8″ 4
Item #: FR10P15970609
Brand: Fraisa USA Inc
Model #: P15970609
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 1-9/16″ |
| Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 4″ |
| Tool Type | Square Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Standard |
| Coating | Polychrom |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Series/List # | NX-RNVD |
