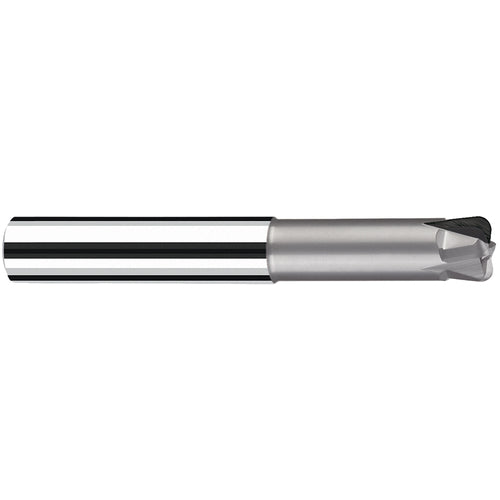

X7620610 XFEED-R 16MM 4 F
Item #: FR10X7620610
Brand: Fraisa USA Inc
Model #: X7620610
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Grade | XT |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Neck Diameter (DN) | 15 mm |
| Depth of Cut Maximum (APMX) | 8 mm |
| Tool Type | Square Endmill |
| Overall Length (OAL) | 92 mm |
| Length Group | 3xD |
| Cutting Edge Material | Carbide |
| Flute Type | Straight |
| Coating | X-AL |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | Xfeed-R |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 3 mm |
