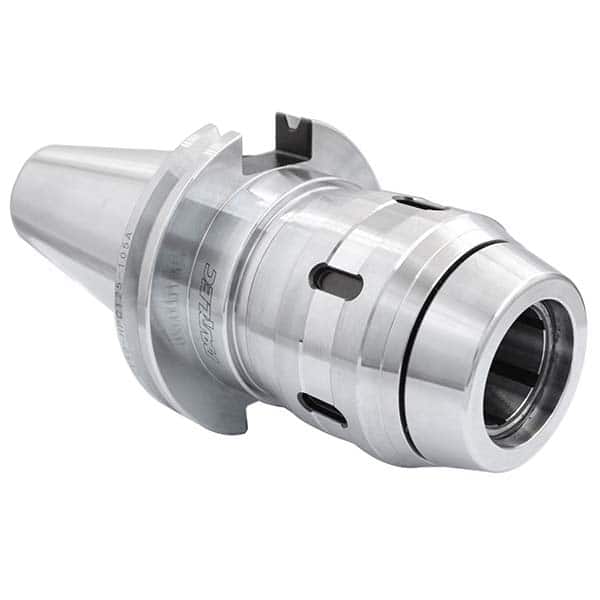

Parlec - Milling Chucks Taper Size: CAT40 Shank Type: Taper Shank
Item #: 10340263
Brand: Parlec
Model #: 74304057
Product Specifications
Milling Chucks; Taper Size: CAT40 ; Shank Type: Taper Shank ; Hole Diameter (Inch): 1.25 ; Nose Diameter (Decimal Inch): 2.7600 ; Projection (Decimal Inch): 4.1300 ; Through Coolant: Yes
| Taper Size | CAT40 |
| Shank Type | Taper Shank |
| Hole Diameter (Inch) | 1.25 |
| Nose Diameter (Decimal Inch) | 2.7600 |
| Projection (Decimal Inch) | 4.1300 |
| Through Coolant | Yes |
| TIR (mm) | 0.0030 |
| Clamping Depth (Decimal Inch) | 2.0900 |
| Overall Length (Decimal Inch) | 6.82000 |
| Balanced to (RPM) | 10000 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle |
