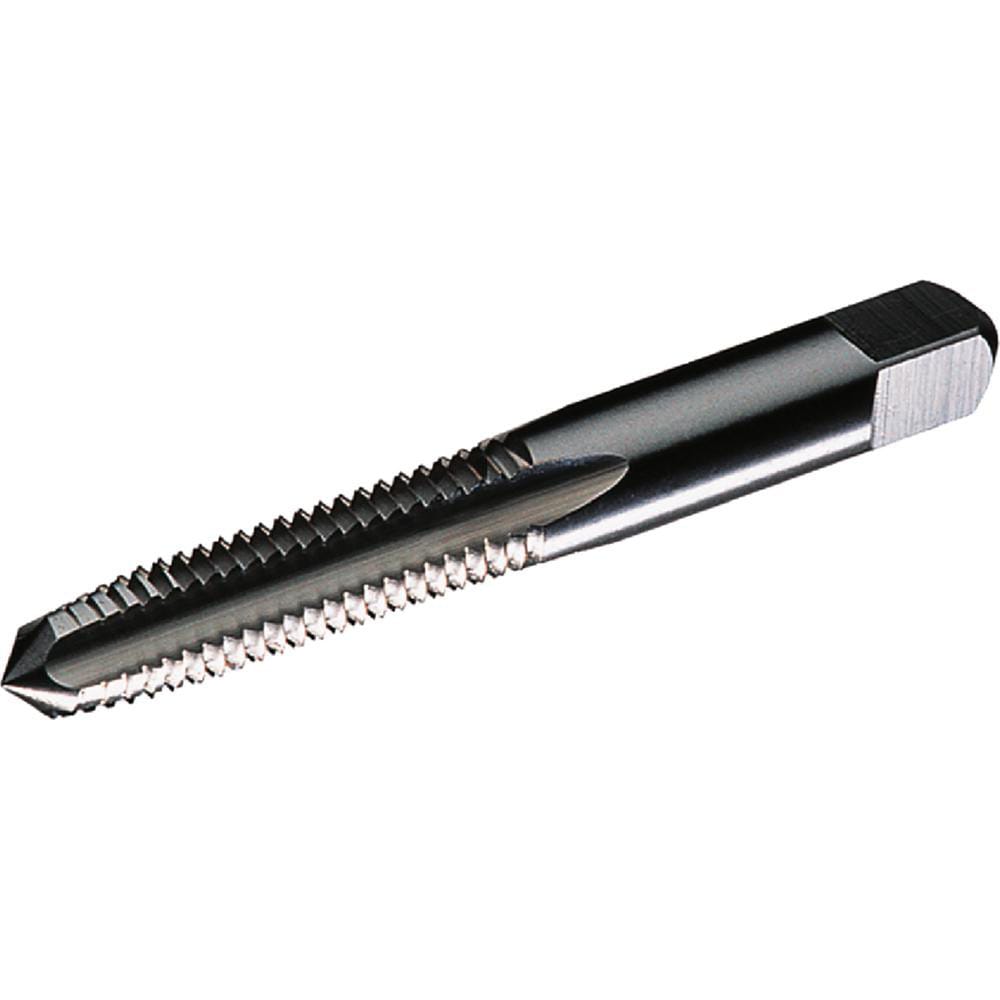

Brand: Widia / Part #: 2748858
Item #: 00185314
Brand: Widia
Model #: 2748858
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | #5-44 |
| Thread Limit | H2 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 44 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0227 |
| Overall Length (Decimal Inch) | 1.9375 |
| Thread Length (Decimal Inch) | 0.6250 |
| Thread Depth (Decimal Inch) | 0.6250 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (mm) | 4.76 |
| Square Size (Decimal Inch) | 0.1100 |
| Series | 5305 |
| Shank Length (Decimal Inch) | 1.3125 |
