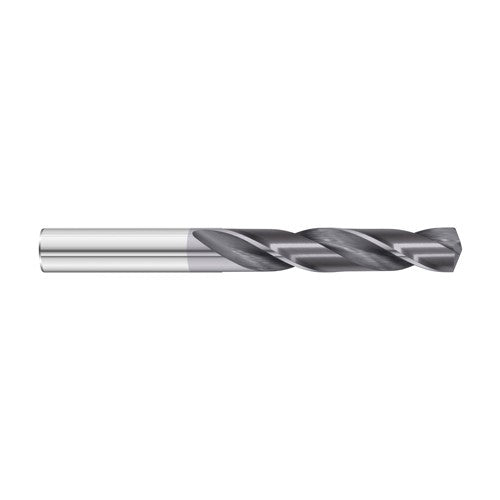

#41 Dia. × 0.096″ Shank × 1″ Flute Length × 2″ OAL, 7xD, 135°, TiAlN, 2xD Flute, External Coolant, Round Solid Carbide Drill
Item #: FT8213037
Brand: Fullerton Tool
Model #: 13037
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #41 |
| Shank Type | Round |
| Decimal Equivalent | 0.096″ |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #41 |
| Cutting Edge Material | Carbide |
| Length Group | 7xD |
| Tool Type | Drill |
| Coating | TiAlN |
| Point Shape | Notch |
| Connection Diameter Machine Side (DCONMS) | 0.096″ |
| Measurement Type | Wire Gauge |
| Coolant Supply Property (CSP) | External |
| Series/List # | 1500 |
| Point Angle (SIG) | 135 Degrees |
| Length Chip Flute (LCF) | 1″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Overall Length (OAL) | 2″ |
