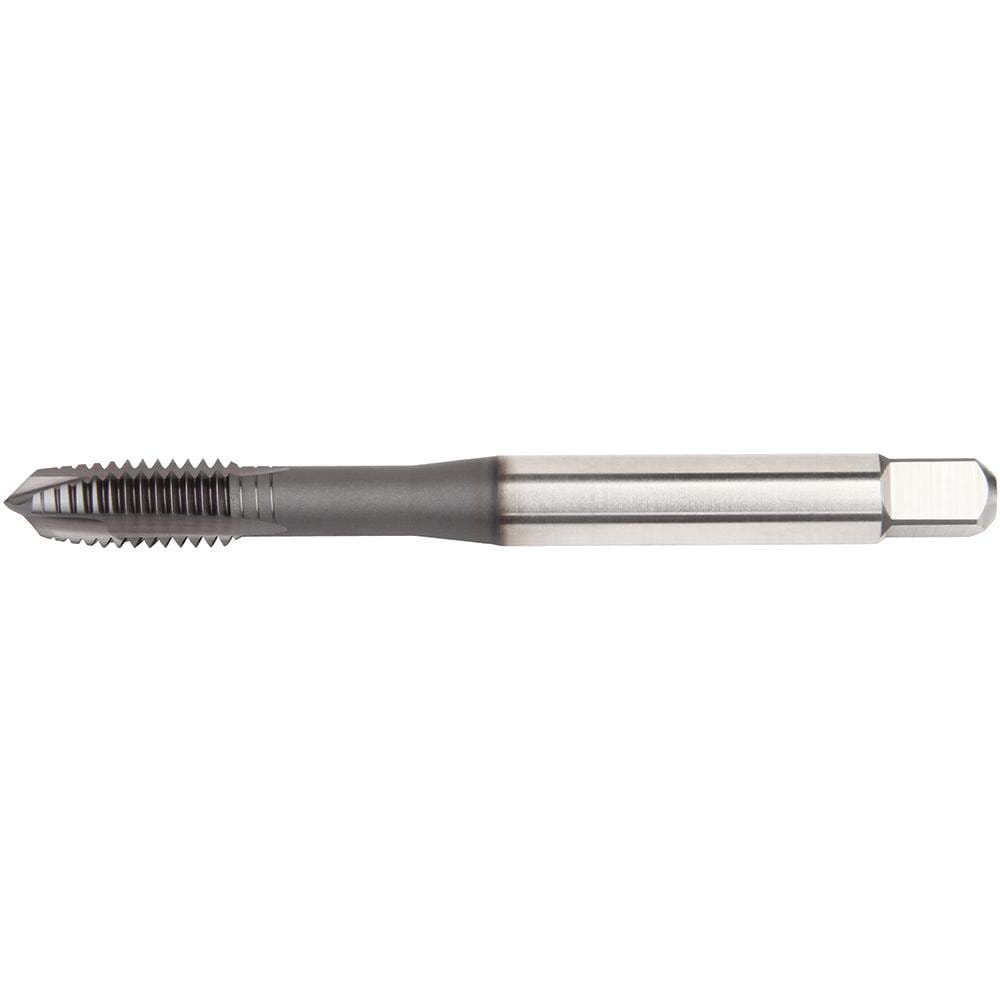

Brand: Widia / Part #: 5368563
Item #: 93086155
Brand: Widia
Model #: 5368563
Product Specifications
| Thread Size (mm) | M16x2 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | TiCN |
| Threads per Inch | 13 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 51.00 |
| Thread Pitch (mm) | 2.00 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Thread Length (mm) | 24.00 |
| Overall Length (mm) | 110.0000 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Square Length (mm) | 12.00 |
| Square Size (mm) | 9.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
