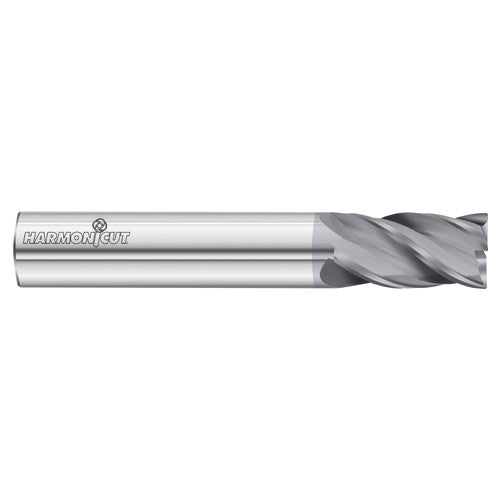

3400SD_FC18 R1.00 6.00 SE
Item #: FT8592576
Brand: Fullerton Tool
Model #: 92576
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 20 mm |
| Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 64 mm |
| Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide |
| Length Group | Regular |
| Coating | FC18 |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | Variable |
| Series/List # | 3400 |
