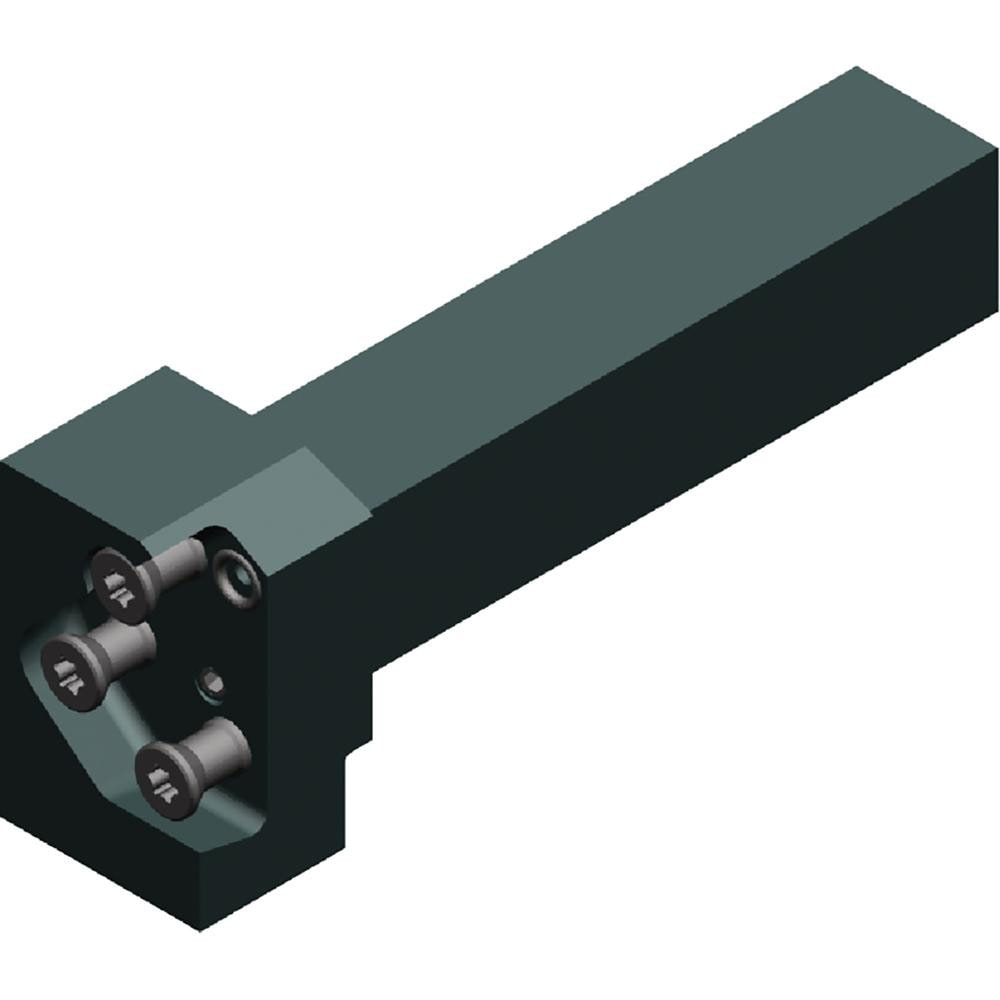

Brand: Widia / Part #: 6498950

Brand: Widia / Part #: 6498950


Item #: 98271554
Brand: Widia
Model #: 6498950

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 1.2598
Hand of Holder Left Hand
Maximum Groove Width (Decimal Inch) 0.3150
Minimum Groove Width (Decimal Inch) 0.2360
Toolholder Style WGCME
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 65
Shank Height (Inch) 1-1/4
Shank Height (Decimal Inch) 1.2500
Shank Length (Decimal Inch) 4.7000
Shank Width/Diameter (Decimal Inch) 1.2500
Shank Width/Diameter (Inch) 1-1/4
Series WGC
Overall Length (Decimal Inch) 6.0000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.4130
Head Height (mm) 53.100
Head Length (Decimal Inch) 1.2992
Primary Workpiece Material Universal
Insert Seat Size 65.0
Coolant Through Yes
$ 207.35
