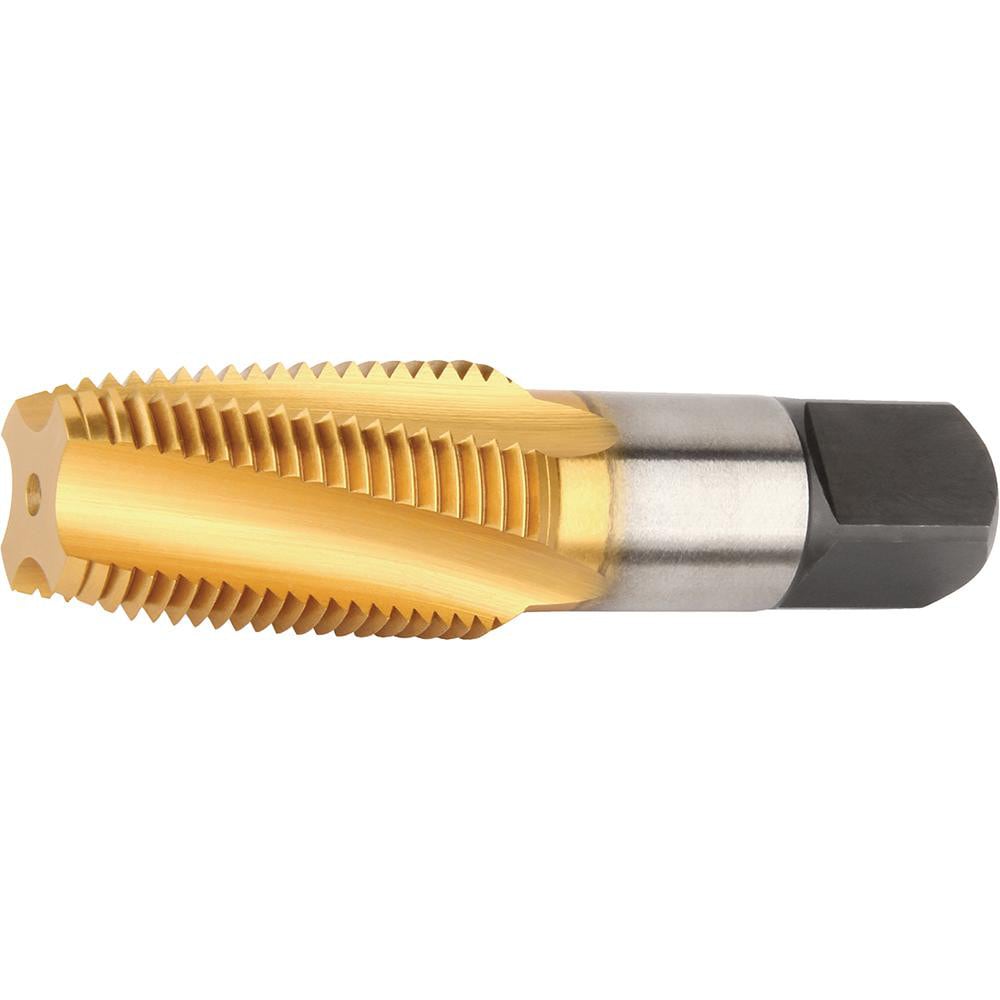

Brand: Widia / Part #: 5629835
Item #: 83144162
Brand: Widia
Model #: 5629835
Product Specifications
| Thread Size (Inch) | 3/4-14 |
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Chamfer | Semi-Bottoming |
| Thread Standard | NPT |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 1.3750 |
| Thread Length (Inch) | 1-3/8 |
| Thread Depth (Decimal Inch) | 1.3750 |
| Shank Diameter (Decimal Inch) | 0.9063 |
| Square Length (Decimal Inch) | 0.6880 |
| Square Size (Decimal Inch) | 0.7000 |
| Application | Tapping |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 14.0 |
| Coating/Finish | Black Oxide |
| Number Of Flutes | 4 |
