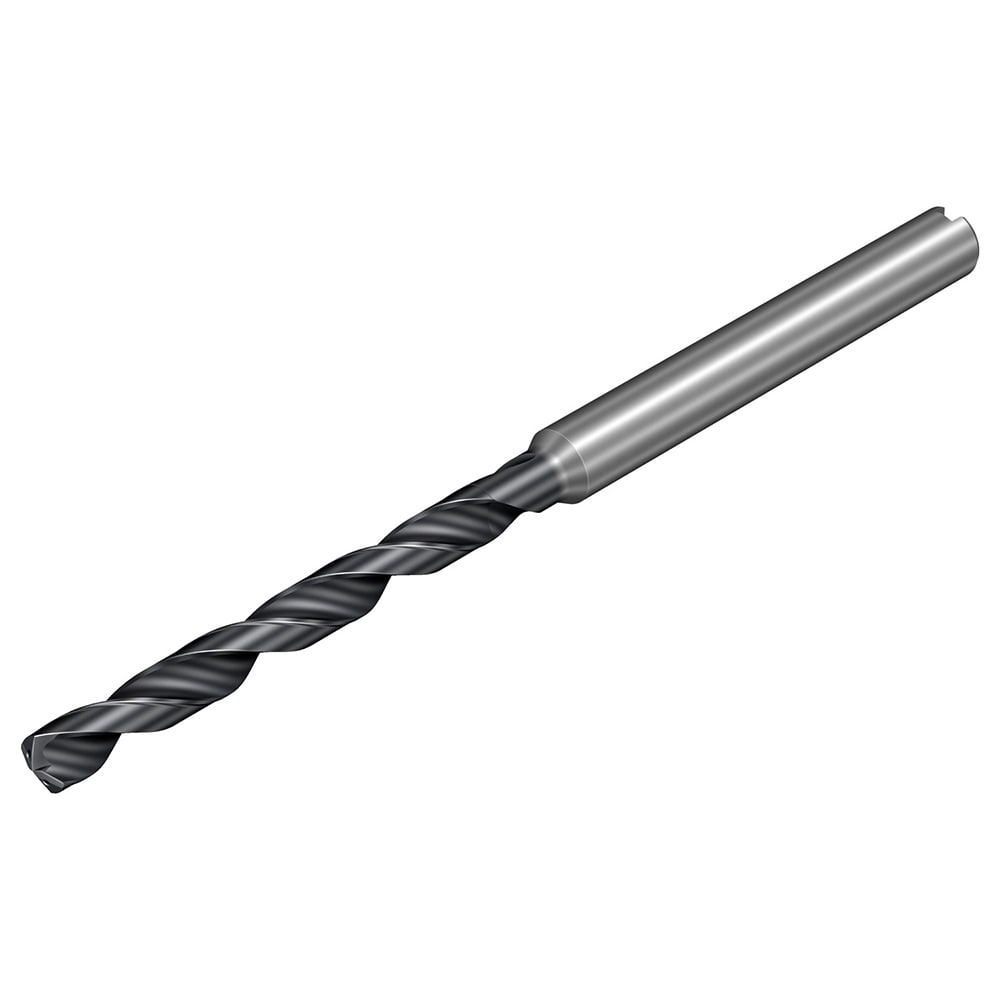

Brand: Sandvik Coromant / Part #: 8308648
Item #: 67405035
Brand: Sandvik Coromant
Model #: 8308648
Product Specifications
| Drill Bit Size (mm) | 1.00 |
| Drill Bit Size (Decimal Inch) | 0.0394 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.3150 |
| Flute Length (mm) | 8.00 |
| Coating/Finish | AlTiCrN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 6.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.2362 |
| Number Of Flutes | 2 |
| Series | CoroDrill? 862 |
| Overall Length (Decimal Inch) | 1.4961 |
| Overall Length (mm) | 38.0000 |
| Flute Type | Spiral |
| Shank Type | Cylindrical Shank |
| Tool Application | Very Small Hole Drilling |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.0000 |
| Flute By Diameter Ratio | 6xD |
| Drill Bit Grade | X2BM |
