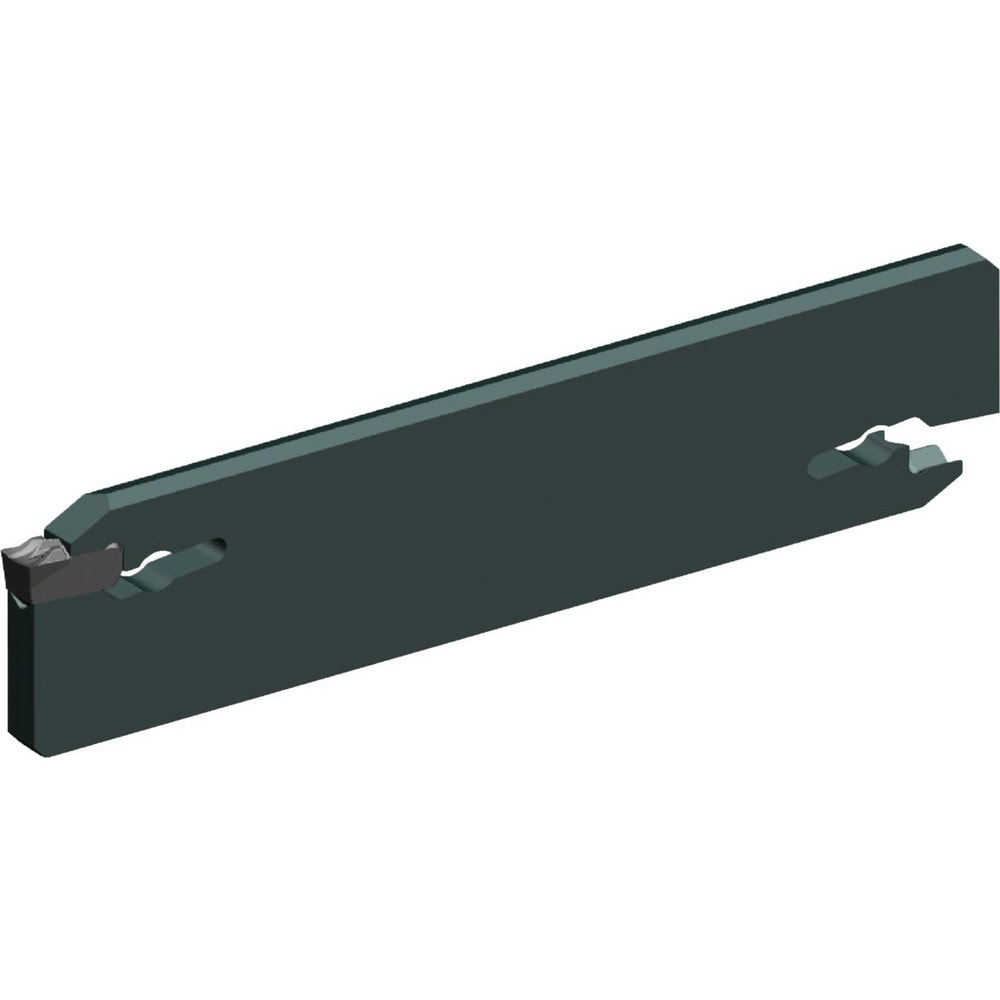

Brand: Widia / Part #: 6499213

Brand: Widia / Part #: 6499213


Item #: 32900557
Brand: Widia
Model #: 6499213

Product Specifications

End Type Double-Ended
Cutting Direction Neutral
Hand Neutral
Blade Height (mm) 32.00
Blade Height (Decimal Inch) 1.2589
Blade Width (Decimal Inch) 0.0650
Blade Width (mm) 1.65
Blade Overall Length (Decimal Inch) 5.9155
Blade Overall Length (mm) 150.25
Blade Style WGC
Compatible Insert Style WGC
Compatible Insert Size Code 2
Tool Material Steel
Insert Holding Method Spring Clamp
Maximum Workpiece Diameter (mm) 100.00
Maximum Workpiece Diameter (Decimal Inch) 3.9342
Series WGC
Insert Style WGC
Cutting Tool Application Grooving; Cut-Off
Primary Workpiece Material Universal
Insert Seat Size 2
Maximum Depth of Cut (Decimal Inch) 1.9671
Maximum Depth of Cut (mm) 50.00
Minimum Workpiece Diameter (Decimal Inch) 0.0000
Cutting Height (mm) 25.05
Cutting Height (Decimal Inch) 0.9862
Minimum Insert Width (Decimal Inch) 0.0787
Minimum Insert Width (mm) 2.00
Maximum Insert Width (mm) 2.99
Maximum Insert Width (Decimal Inch) 0.1177
Manufacturers Catalog Number WGCBSN32M0250
$ 115.96
