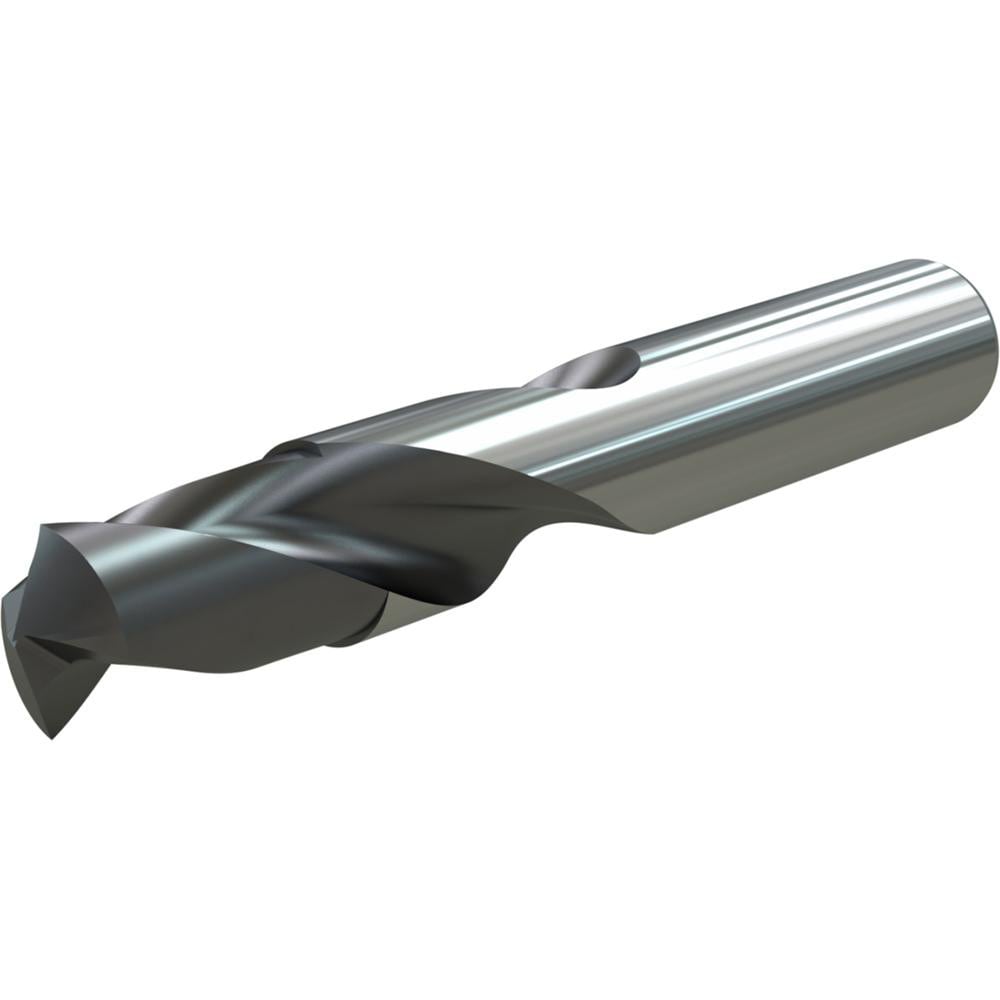

Brand: Widia / Part #: 4144465
Item #: 99501751
Brand: Widia
Model #: 4144465
Product Specifications
| Drill Bit Size (mm) | 13.60 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Thinned |
| Coolant Through | No |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (mm) | 107.0000 |
| Shank Diameter (mm) | 14.0000 |
| Series | VDS201A |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 45.000 |
| Drill Point Length (mm) | 2.34 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | -0.018/0.000 mm |
| Flute Length (mm) | 60.00 |
| Drill Bit Grade | General Purpose |
| Material Grade | Carbide |
