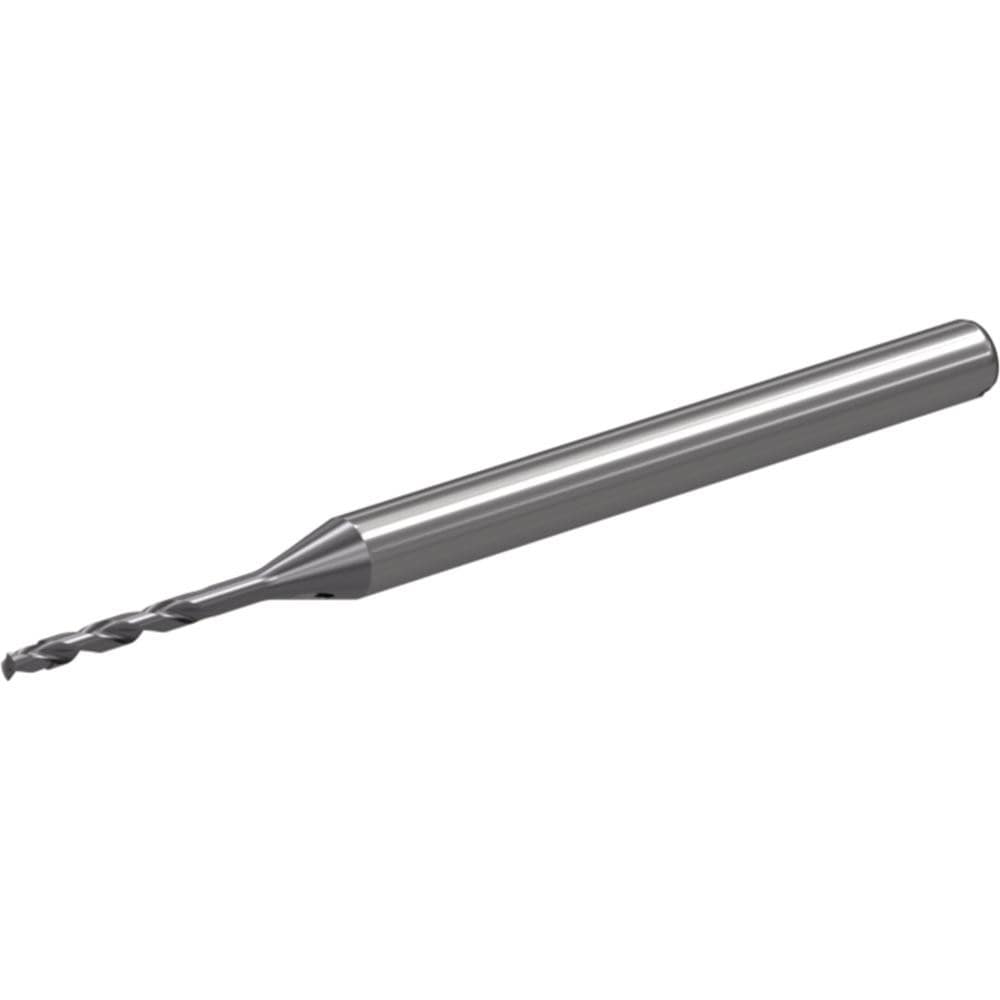

Brand: Widia / Part #: 4143527

Brand: Widia / Part #: 4143527


Item #: 03385119
Brand: Widia
Model #: 4143527

Product Specifications

Drill Bit Size (Inch) 37/64
Tool Material Carbide
Coating/Finish TiAlN
Drill Point Angle 140
Shank Type Cylindrical
Coolant Through Yes
Flute Type Spiral
Series VDS403A
Point Type Standard
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular
Drill Bit Diameter Tolerance -0.000709 to 0.000000 in
Number Of Flutes 2
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Drill Bit Grade WU25PD
Drill Bit Size (Decimal Inch) 0.5781
Drill Point Length (Decimal Inch) 0.1000
Overall Length (Decimal Inch) 7.7559
Shank Diameter (Decimal Inch) 0.6299
Shank Length (Decimal Inch) 1.8898
Flute Length (Decimal Inch) 5.7480
Flute By Diameter Ratio 8xD
Maximum Drilling Depth (Decimal Inch) 5.0394
$ 406.25
