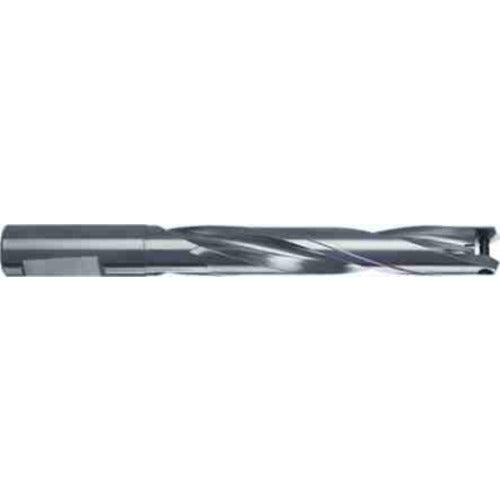

9041080340000 Drill Body
Item #: GD1041080340000
Brand: Guhring
Model #: 9041080340000
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 34 mm - 34.99 mm |
| Overall Length (OAL) | 300 mm |
| Usable Length (LU) | 181 mm |
| Shank Length (LS) | 60 mm |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | whistle notch |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Coating | Nickel plated |
| Cutting Diameter Minimum (DCN) | 34 mm |
| Body Material | Tool steel |
| Cutting Diameter Maximum (DCX) | 34.99 mm |
