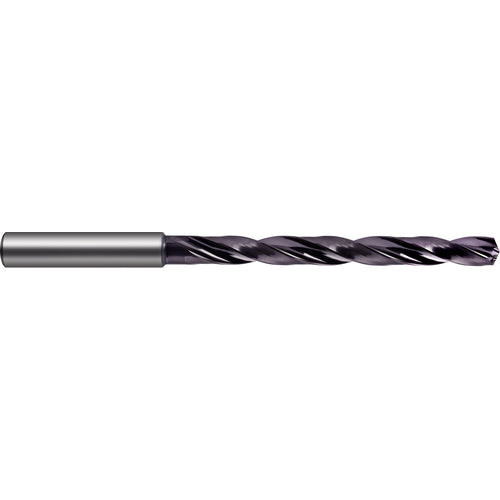

5/8″ Dia. × 16 mm Shank × 152 mm Flute Length × 204 mm OAL, 7xD, 140°, nano-FIREX, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: GD1054990158700
Brand: Guhring
Model #: 9054990158700
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ |
| Measurement Type | Inch |
| Decimal Equivalent | 0.625″ |
| Series/List # | 5499 |
| Length Group | 7xD |
| Usable Length (LU) | 128.2 mm |
| Coating | nano-FIREX |
| Length Chip Flute (LCF) | 152 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Overall Length (OAL) | 204 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
