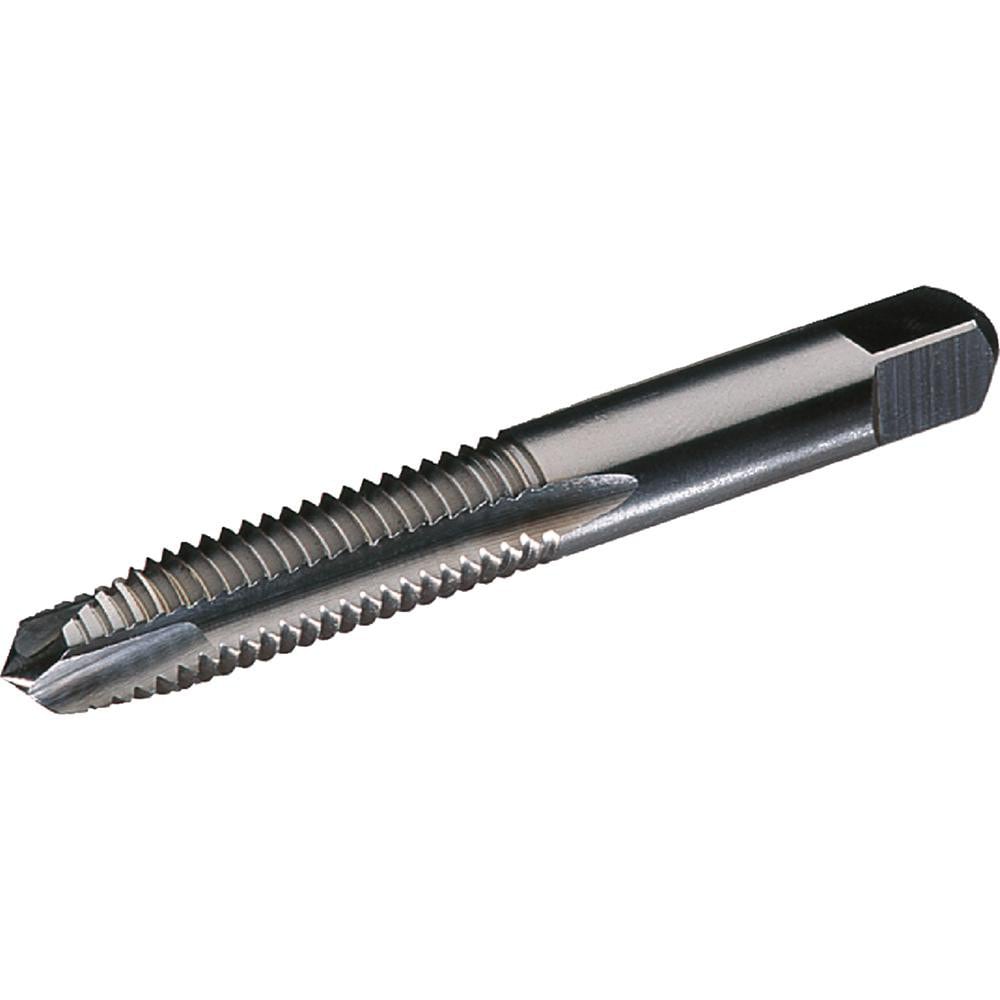

Brand: Widia / Part #: 2864359
Item #: 94015567
Brand: Widia
Model #: 2864359
Product Specifications
| Thread Size (Inch) | #10-32 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | H3 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.8750 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 2.3800 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5601 |
