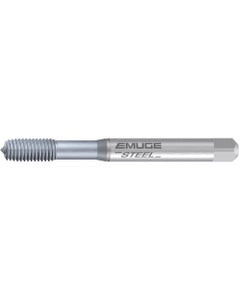

M 8-6HX REK.1DRUCK-S CR
Item #: ER4512315
Brand: EMUGE-FRANKEN
Model #: B0911300.0080
| Product Specifications | |
|---|---|
| Tool Type | Modified Bottoming Form Tap |
| Applicable Material | | General Purpose | |
| Thread Diameter Size (TDZ) | M8 |
| Coating | Chrome |
| Thread Pitch (TP) | 1.25 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 90 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | | 6HX | |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric |
| Series/List # | 911300 |
| Application | Through Hole | Blind Hole |
| Thread Size | M8 × 1.25 |
