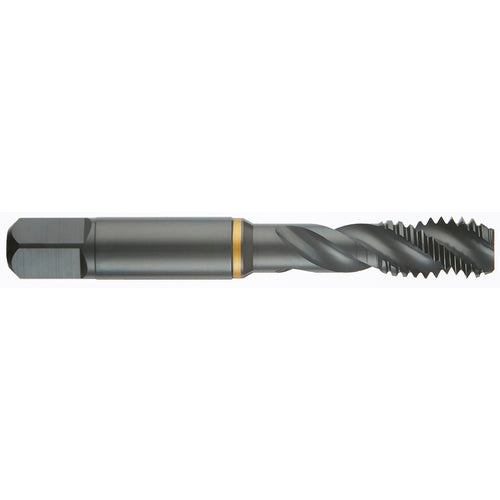

3/4″ - 10 UNC 4-Flute, H5 Semi-Bottoming Series/List # 4407 Spiral Flute Tap
Item #: GD1444075190500
Brand: Guhring
Model #: 9044075190500
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/4″ |
| Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 10 |
| Chamfer | 2-3 Form C |
| Thread Standard | UNC |
| Coating | Steam Oxide |
| Overall Length (OAL) | 4.252″ |
| Flute Length | 0.9843″ |
| Thread Cutting Part Length (THL) | 0.984″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | without |
| Flute Helix Angle (FHA) | 40 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | HSS-E |
| Series/List # | 4407 |
