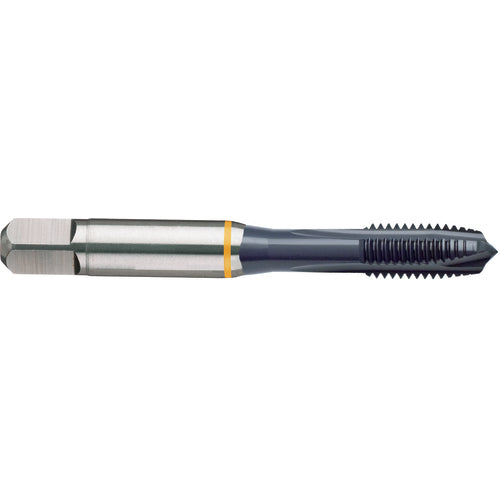

3/8-16 H3 COB PLUG TAP-TICN
Item #: GD1544043095250
Brand: Guhring
Model #: 9044043095250
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSS-E |
| Thread Size | 3/8″ - 16 |
| Tool Type | Spiral Point |
| Thread Diameter Size (TDZ) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Threads per Inch (TPI) | 16 |
| Thread Cutting Part Length (THL) | 0.787″ |
| Thread Tolerance Class (TCTR) | H3 |
| Flute Length | 0.787″ |
| Overall Length (OAL) | 2.941″ |
| End Shape | Spiral Point |
| Chamfer | Plug |
| Style | Plug |
| Coating | TiCN |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | 4404 |
